Carrier System

Chassis: Special C Bend ST52 (Hot-Dip Galvanized)
External Wall: 50 mm Wide Steel Wall System
Internal Wall: 50 mm Wide Steel Wall System

Facade Cladding System and Insulation

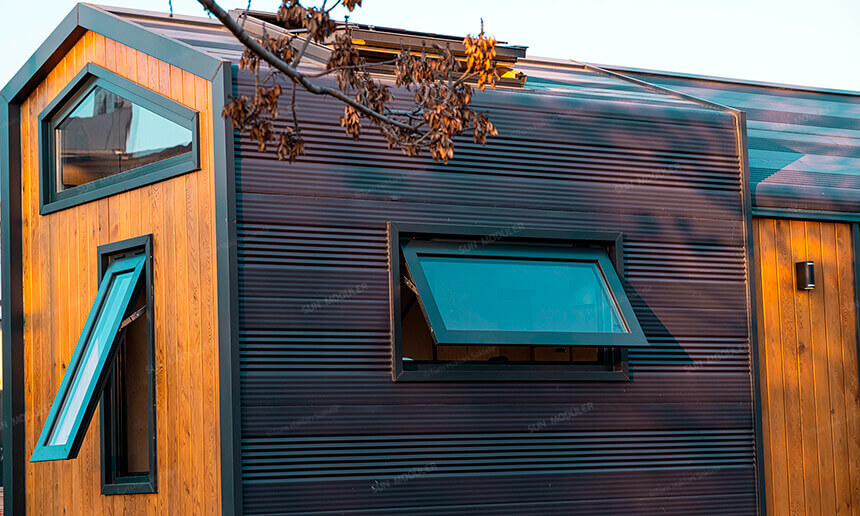

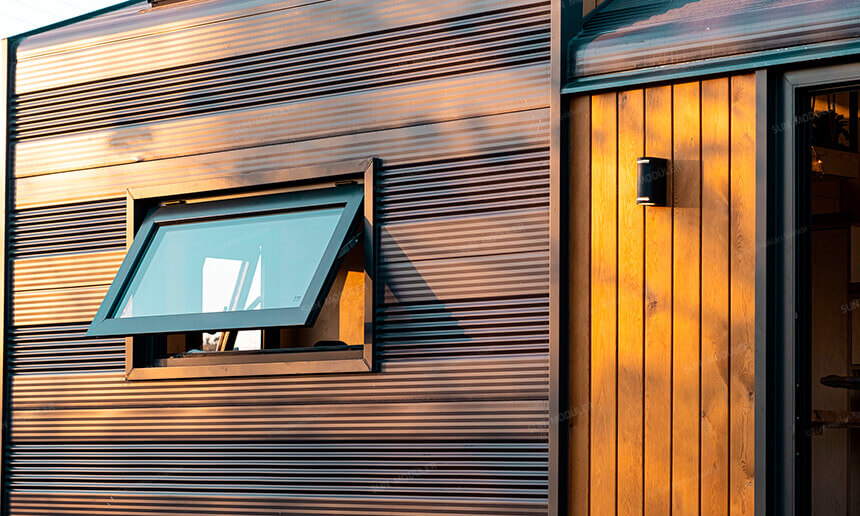

External Facade: Painted Galvanized Sheet Facade Board, Local Thermowood Natural Wood Cladding, Aluminum Eaves and Corner Details
External Facade Insulation: 40 mm Polyurethane Density 40 (±2) kg/m³ + 50mm Mineral Wool - Fire Resistance Class 1A, Thermal Conductivity = 0.037 W/mK
Internal Facade: Birch Marine Plywood Cladding + MDF Cladding
Internal Facade Insulation: 50mm Mineral Wool, Fire Resistance Class 1A, Thermal Conductivity 0.040 W/mK

Roof Cladding System and Insulation

Roof Cladding: Painted Galvanized Sheet Roof Panel
Roof Insulation: 40mm Polyurethane, Density 40 (±2) kg/m³
Additional Roof Insulation: 50mm Mineral Wool, Fire Resistance Class 1A, Thermal Conductivity 0.040 W/mK

Doors and Windows

Internal Doors: Lacquered Door and Accessories
Windows: Thermal Insulated Aluminum Window System
Glass: 4+16+4 Insulated Glass, Tempered (E Ce
