Carrier System
External Wall: 60 mm Wide Steel Wall System
Internal Wall: 60 mm Wide Steel Wall System
Facade Cladding System and Insulation

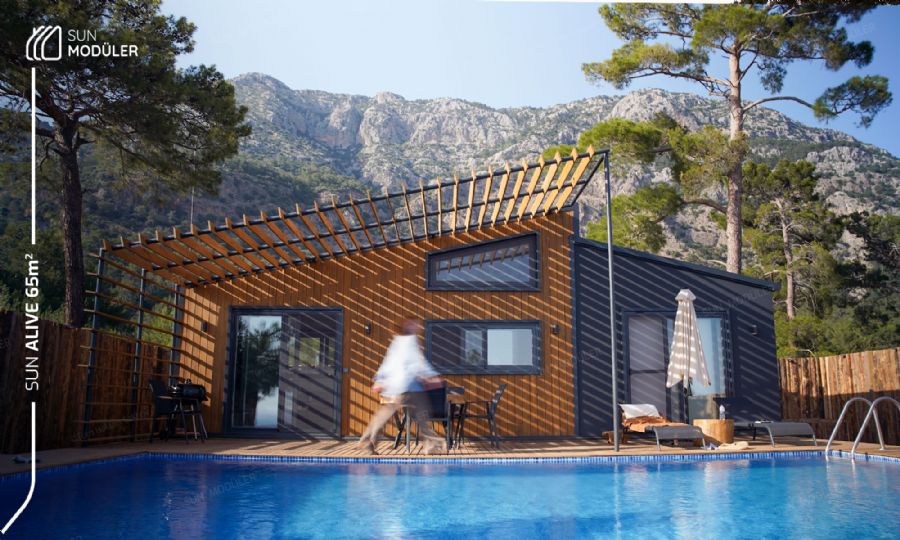

External Facade: Boardex Facade Board, Thermal Insulation Plaster, Plaster Mesh,
Decorative Mineral Plaster, Local Thermowood Natural Wood Cladding, Aluminum Eaves and Corner Details
External Facade Insulation: 60mm Mineral Wool, Fire Resistance Class 1A, Thermal Conductivity = 0.037 W/mK
Internal Facade: Plasterboard, Plaster, Plaster Primer, and Silicone Interior Paint, MDF Cladding Application
Internal Facade Insulation: 60mm Mineral Wool, Fire Resistance Class 1A, Thermal Conductivity 0.040 W/mK
Roof Cladding System and Insulation
Roof Cladding: Painted Galvanized Sheet Roof Panel
Roof Insulation: 40mm Polyurethane, Density 40 (±2) kg/m³
Additional Roof Insulation: 50mm Mineral Wool, Fire Resistance Class 1A, Thermal Conductivity 0.040 W/mK
Doors and Windows
Internal Doors: Lacquered Door and Accessories

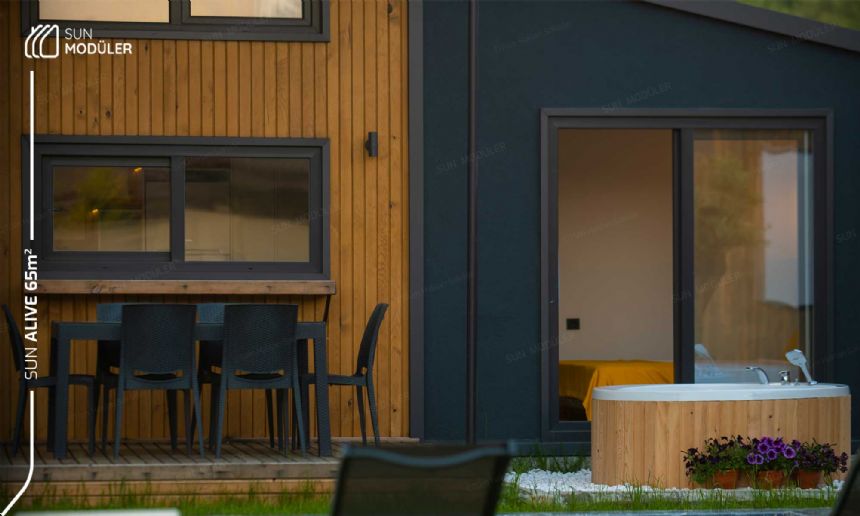

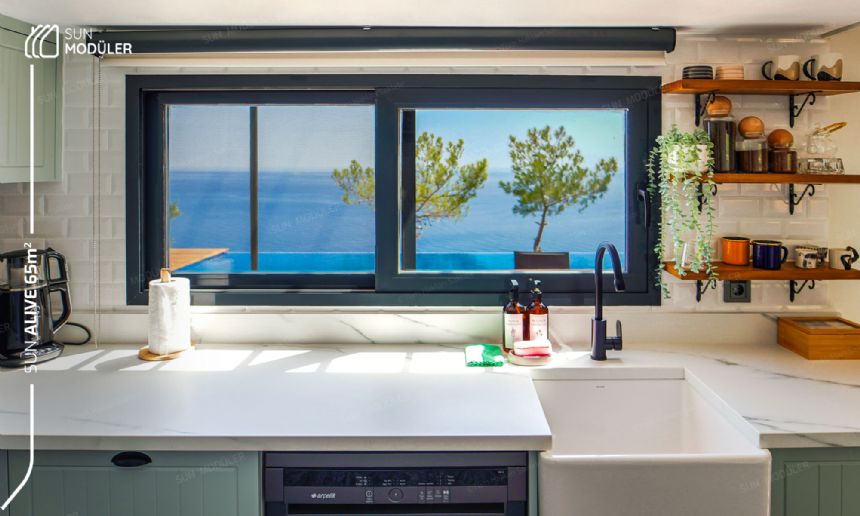

Windows: PVC Window System
Glass: 4+16+4 Insulated Glass
